Here you can take a look at some of the projects that I have worked on, either as personal projects or for school.
This site is also sort of a project of its own, I suppose. I started with a template that gave me the nav/sidebar and the rest was created by me. I made it fully responsive, so please resize your browser to see the elements change and reorganize to fit the window size. Also, my favourite project is My Record Collection so don't miss it.
With this project, I set out to create an AI model to forecast the attendance at the campus gym. During end of my third year, I started regularly going to the gym on campus. I eventually learned that the staff post live attendance updates every 30 minutes on Twitter. After initially finding it difficult to interpret the posts as busy or not, I thought I would write a script to scrape as much information from their tweets as possible and graph it. With the python package I was using, I could scrape the most recent ~800 tweets. Only able to scrape up to ~800 tweets in the past, I run the script once a month for 8 months and accumulated over 5000 datapoints.

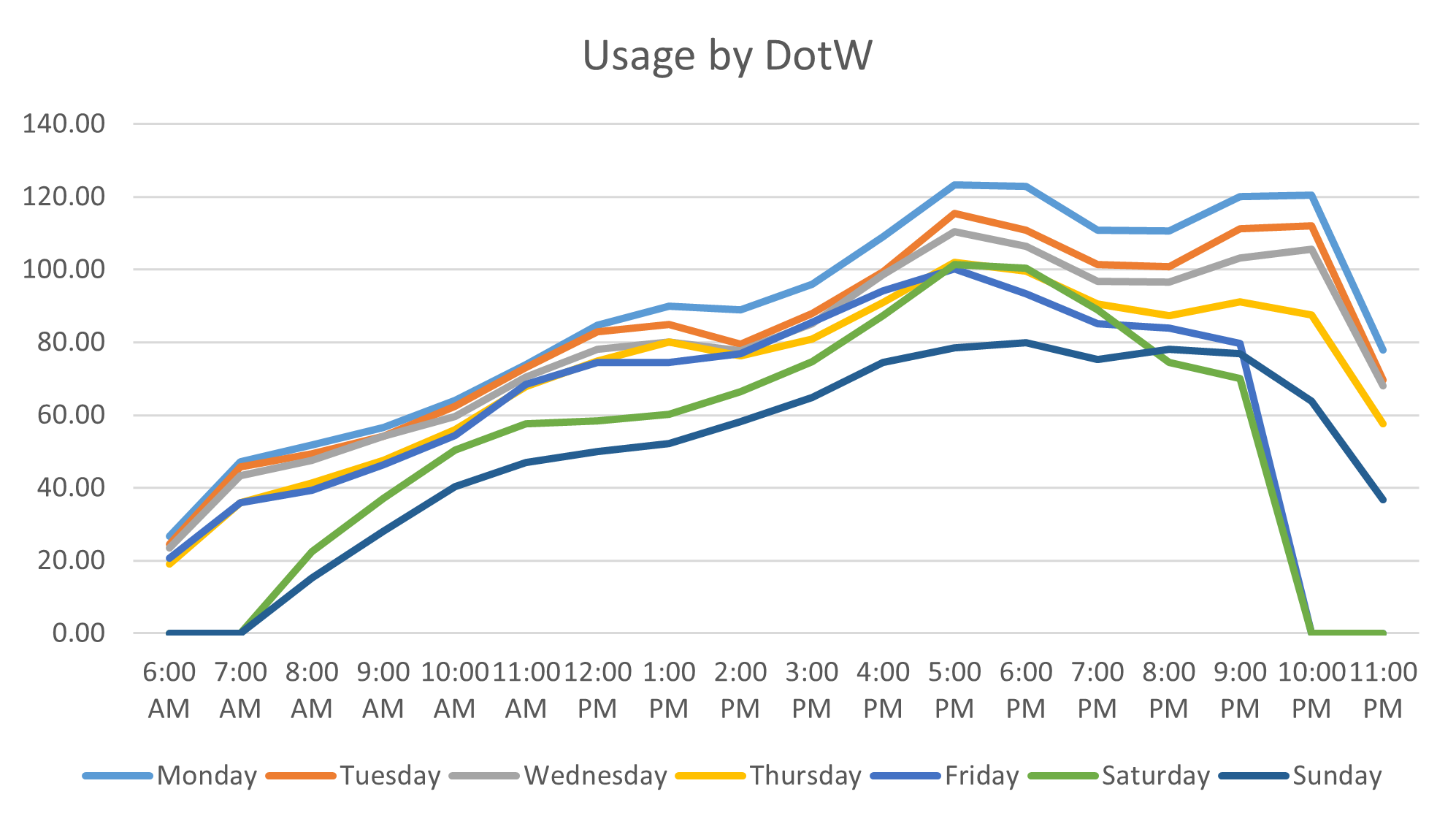

I referred to this dataset as my day of the week average model because it took every data point for each day of the week and hour and then simply averaged them together. This data helped me pick the best day and time to go to the gym, mid-day Sunday. Looking back, I probably could have just googled "what day is the gym least busy?" but where's the fun in that?
Quickly, I realized I wanted to do more with the data I was accumulating. So, for my AI 2 final project, I challenged myself to learn about recurrent neural networks and create a long short-term memory (LSTM) model that could perform time series prediction and forecast how many people there would be at the gym on any given day. It would do this by taking as input the previous five hours of attendance readings and then predict each hour's attendance for the rest of the day.
During my research, I discovered a previous student's attempt at solving my problem, which they called GyMBRo, AKA Gym Monitoring By Robot. Clever name. Every day this bot would post a forecast on Twitter. The issue I had with this implementation is that it did not adjust its prediction throughout the day. I planned to have mine do this via the inputting of five points to make the forecast from. GyMBRo did, however, give me a good comparison for my forecasts and an additional 7 years of attendance data (50 000 tuples) to help with model training. Very useful because LSTM models are known to be very dependent on large training sets. Thanks Demetri!
Keeping things concise here on my site, I engineered my labeled tuples to consist of 5 features: the month (1-12), the week (0-52), the day (1-31), the hour (0-23), and the day of the week (0-6). The label was the number of people in the weight room. This label would also be a feature when used for making the next prediction. I also added tuples for when the gym was closed. After feature engineering, I separated 80% of the days for training, 10% for validation, and the remaining 10% for testing. I then used PyTorch to train my LSTM model. I tried several different hyperparameter tunings and trained 100 epochs for each variation of hyperparameters, saving the one with the best mean squared error (MSE) on the validation set. I ended up creating a model with a test MSE of 541.6. This is noticeably better than the MSE of my simple day of the week average model, which had a MSE of 752.2 on the same dataset. For more in-depth background information, methodology, results, and conclusions of my research, find my full report here.

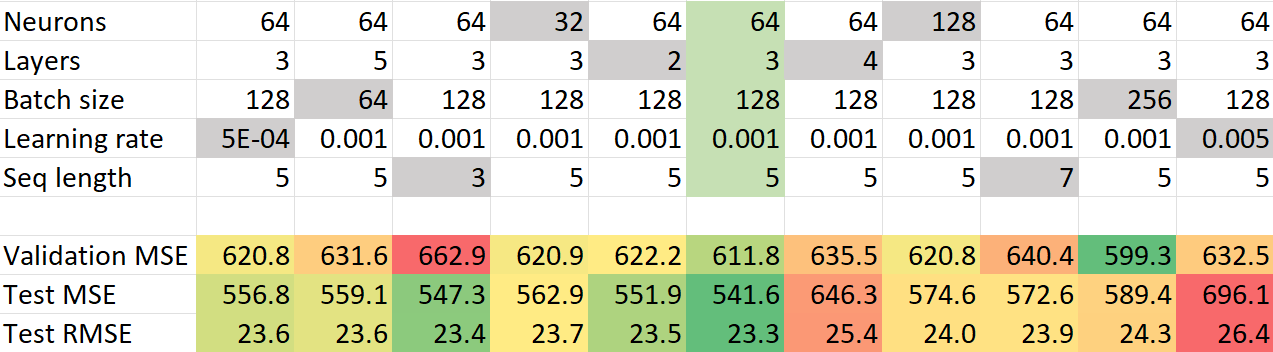

This chart shows different hyperparameter combinations during training. The column in light green shows the best combination I found. Each other column has a grey value that differs from the best combination. The validation and test mean squared error for each combination at the bottom is colour coded as green (best) to red (worst). Root mean squared error is also included.
After concluding my research, I learned lots about what it takes to create an AI model, the necessary steps needed to format training and testing data, and how to communicate my findings. Ultimately, I considered my model a success. It preformed better than my previous attempts of forecasting by averaging days' data, and, often, I found the model to preform better the GyMBRo model. I did not find the model's performance at forecasting from the start of the day to be very accurate. I think the model could be improved by adding more features, specifically for upcoming holidays and open/closed hours. As well, perhaps combining two models for a forecast would be beneficial. Using a different architecture to make a morning forecast could counteract the underestimating morning problem.

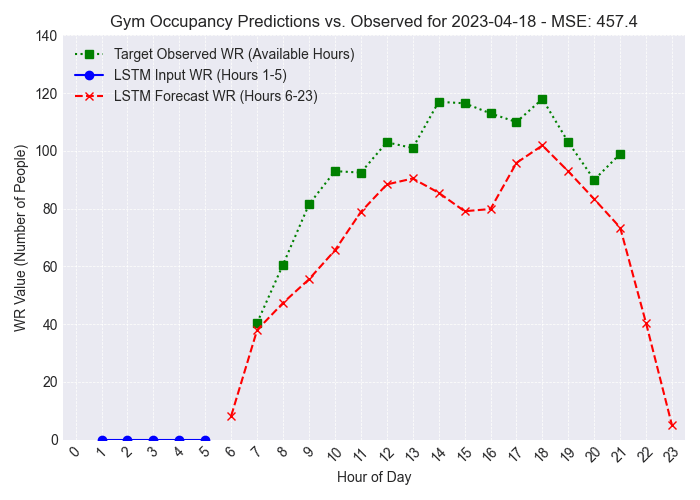

This is an animation of many hourly forecasts for April 18, 2023 throughout the day. The red line shows the prediction made by the model for the remainder of the day based on the 5-hour long input sequence in blue. The green line shows the actual attendance reported by Rec Centre staff. The red prediction line should, in theory, match up or be very close to the green line. Additionally, the MSE can also be seen for each prediction at the top.

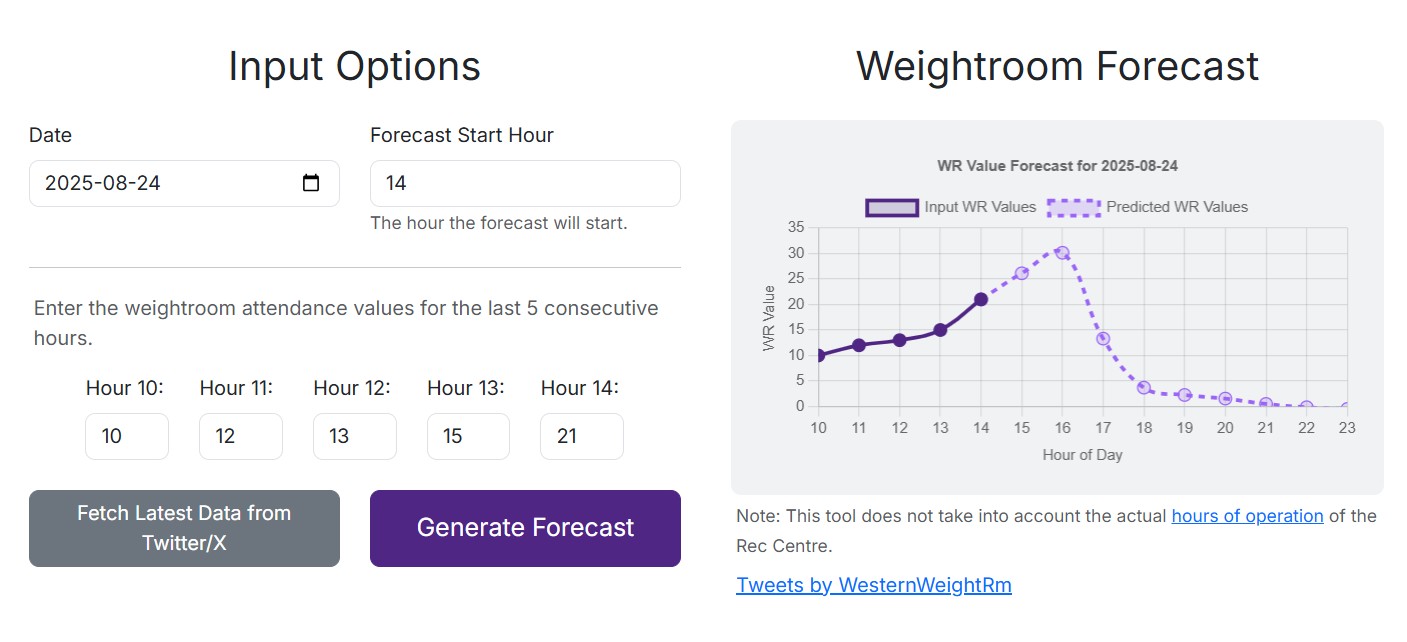

With the online forecasting app, you can enter any date and 5 data points to create a forecast without needing to download and run the model on your own machine. When you click Generate Forecast, the app will send a request to a Google Cloud compute instance running a python flask server with the LSTM model ready to handle the request. (Your first forecast may be slower to generate)
Using knowledge I gained in and outside of class, I solved a problem I found myself facing when I wanted to listen to music; I could not decide what record from my vinyl collection I was in the mood to hear. I found my collection of only around 70 records to be quite daunting to pick from. So much so that sometimes I would skip trying to play a record altogether. What I wished for was an app where I could see all my records easily and sort them by their genres and other attributes I wanted for them.
I solved my problem by creating My Record Collection v1, but after using it for a while, I realized that I wanted something better. I wanted to improve the user experience, connect it to a backend server, add more features, and make the app more visually appealing. Feeling a bit limited with Qt, I decided to completely rebuild the app using React and TypeScript with the MUI library, allowing for a more dynamic, responsive, and attractive user interface that could be used across devices. I also wanted to integrate a backend using Node.js and Express, with a MySQL database to store user data and records. With that goal, I created My Record Collection v2.

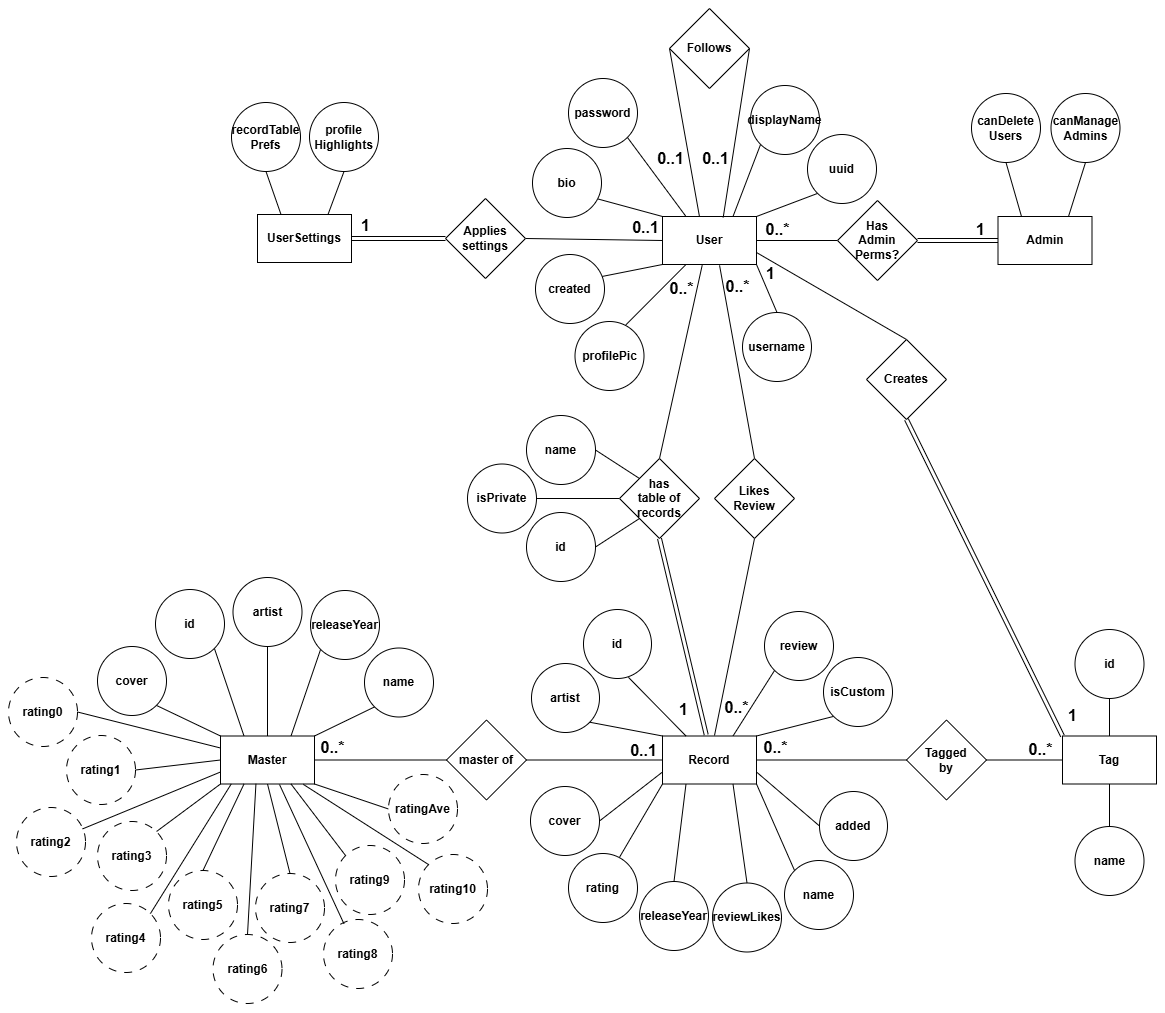

This is the ER diagram I created to plan out the database for the app. It shows the different tables and their relationships to each other.

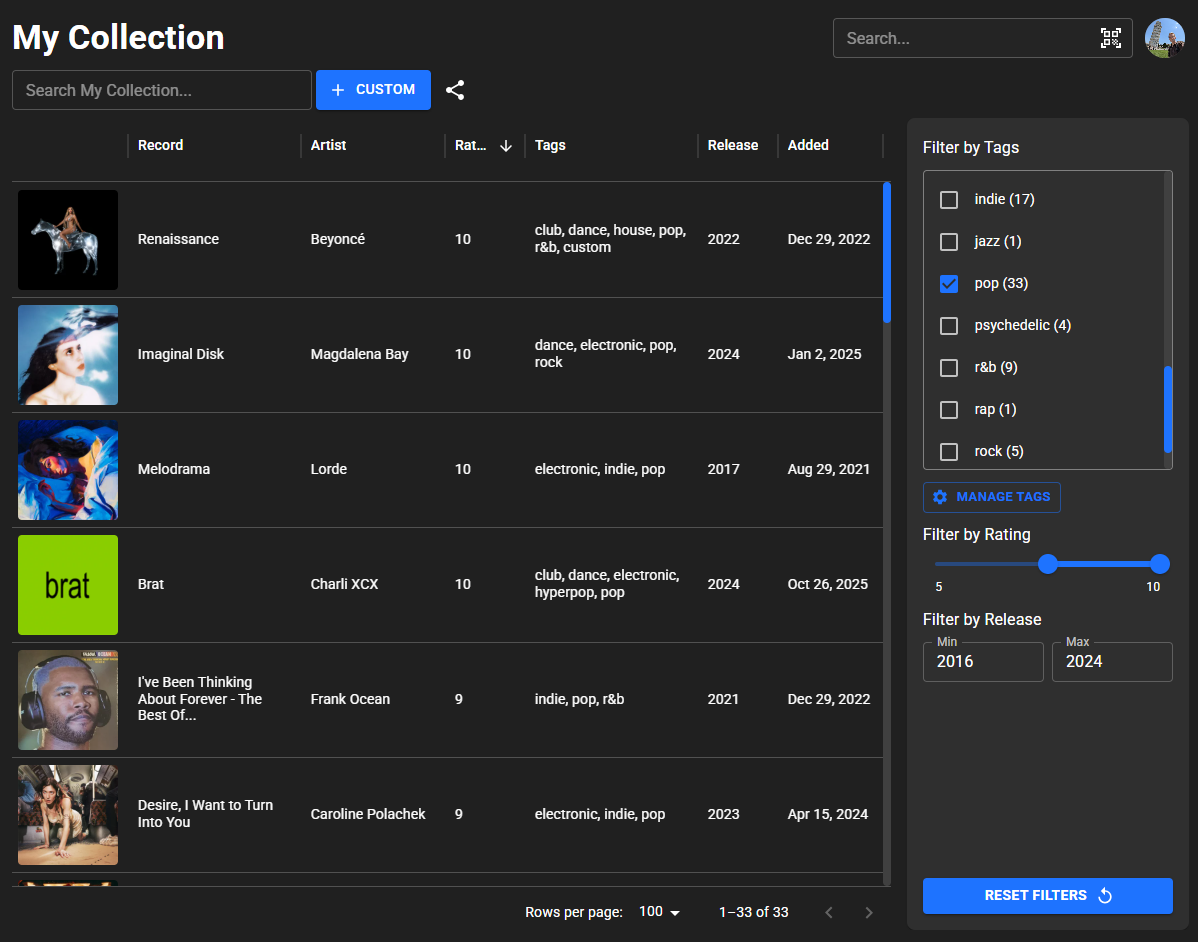

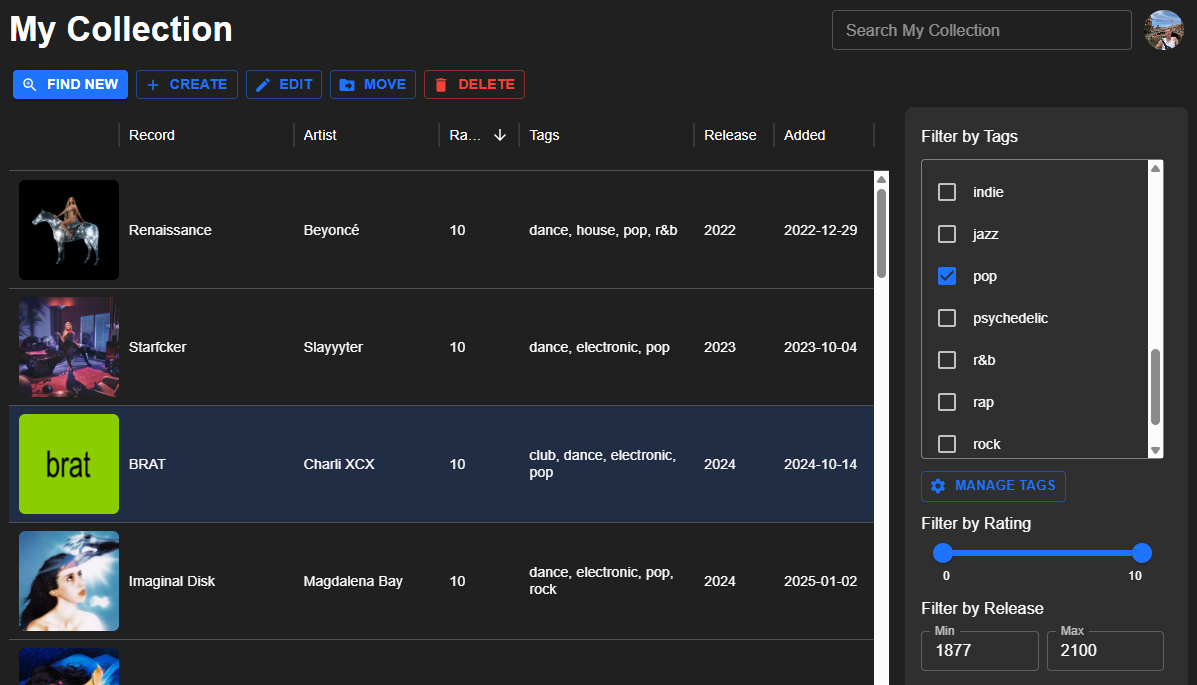

This is the updated collection view with an improved layout and a familiar MUI design. The sidebar on the right allows for filtering by tags, rating, and release date, similar to the previous version. The top bar allows for sorting by various attributes, and the search bar enables quick searching by title or artist.

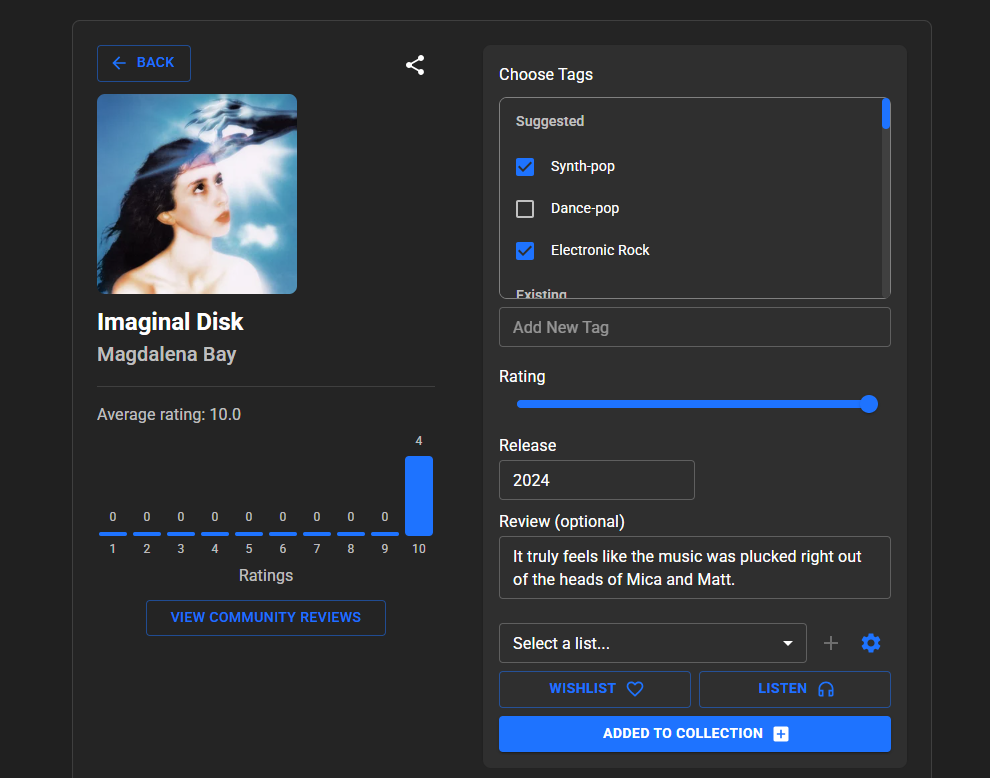

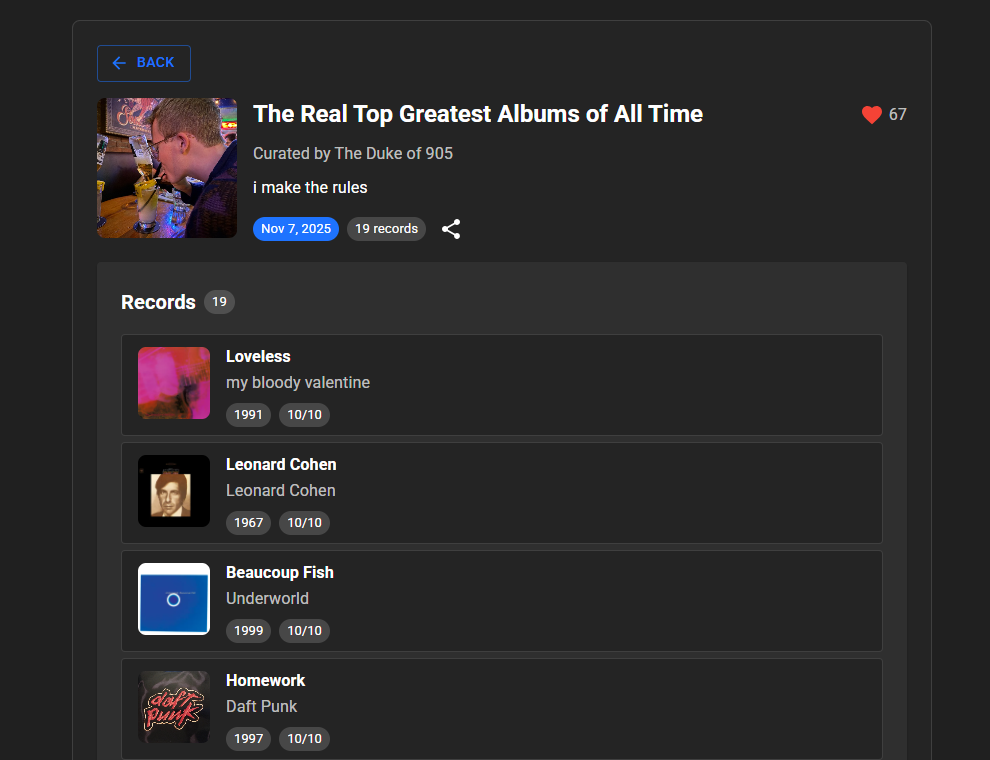

After recreating the basic functions from the first version of the app (adding, editing, filtering, and sorting records, suggested tags for records, and importing Discogs collections), I focused on improving the user experience and developing new features. I knew I wanted a wishlist feature, as I often found myself wanting to keep track of albums I wanted to buy in the future in one place. I also knew I wanted to add public profiles, because now that the app was web-based, I wanted to be able to share my collection and see the collections of my friends.

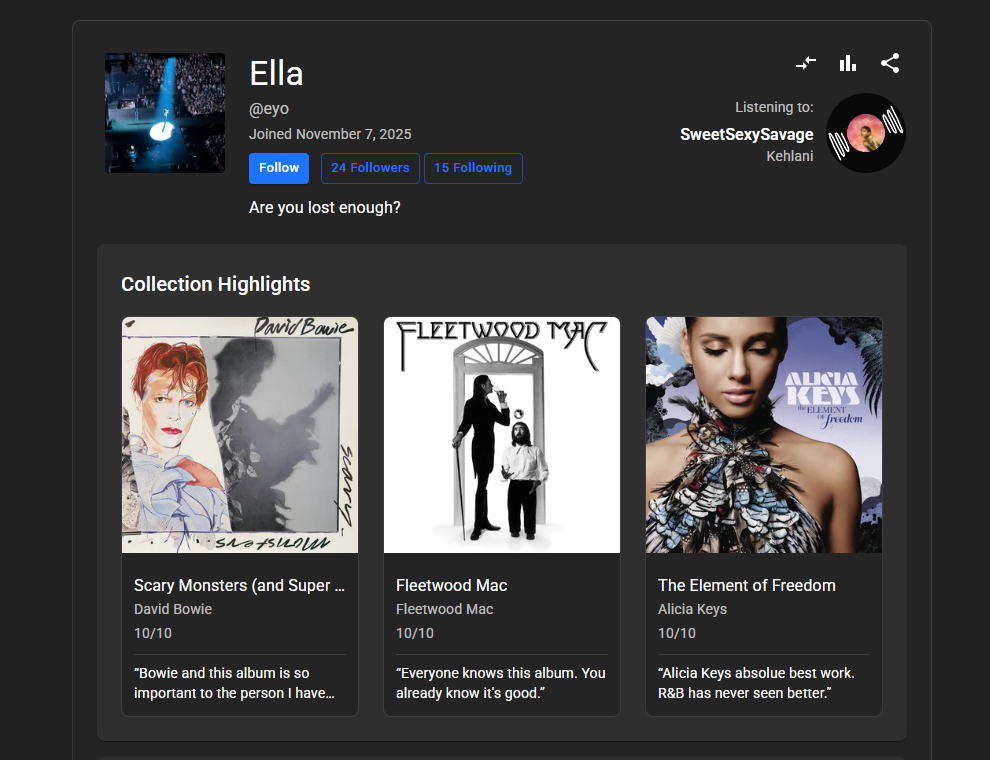

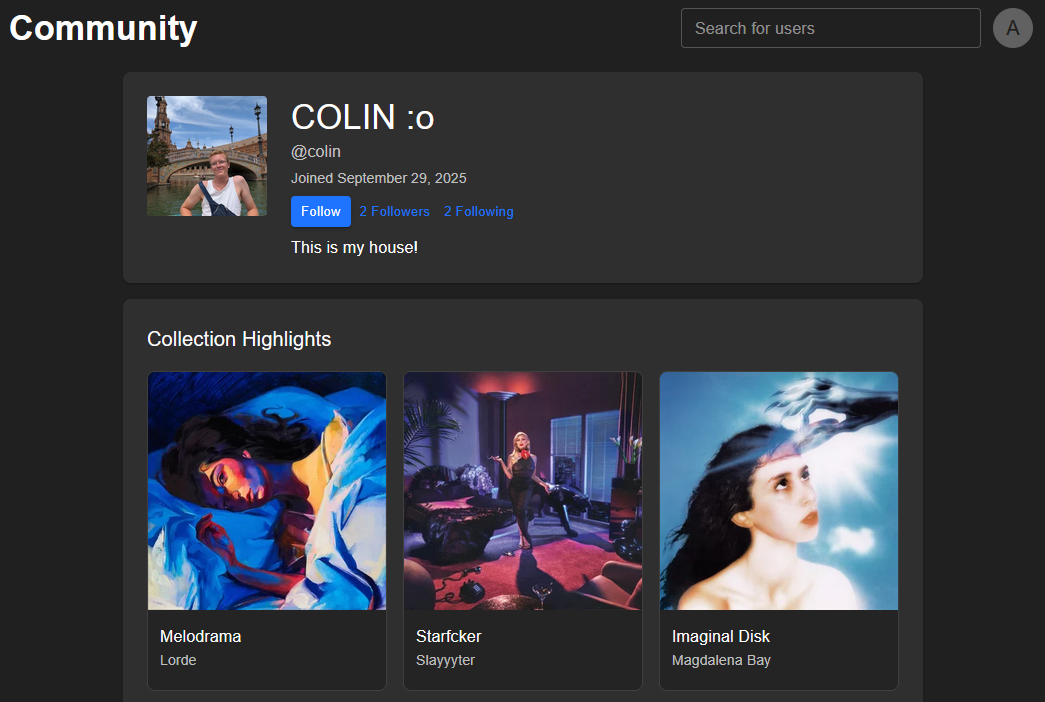

This is the new profile that every user can customize. Each user can set their display name, profile picture, and bio in their settings, and they can also select three records to show off at the top of their profile. Other users can find their profile to view their collection and wishlist, as well as follow them to see when they add new records.

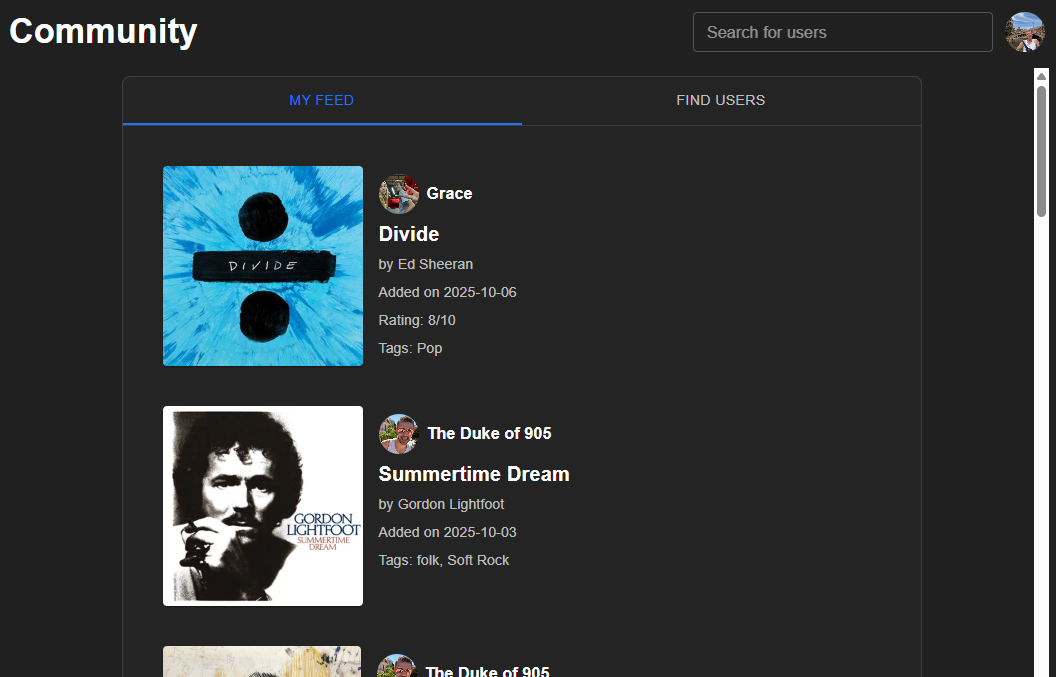

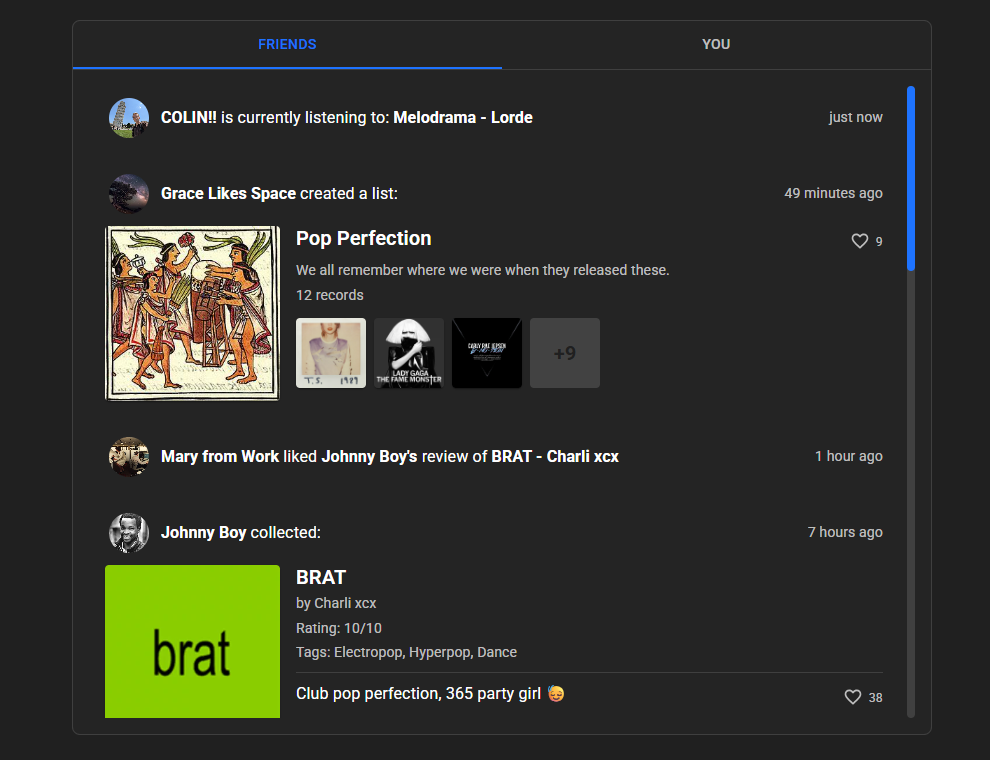

This is the feed view. It is where a user can go to see the latest activity from users they follow, such as new records added to their collections, the rating they gave it, and any tags they added.
My Record Collection v1 was my first major personal project. I had just finished CS3307: Objected-Oriented Design and Analysis, where we were tasked to come up with our own idea for a software and make it with C++. We came across the Qt framework and used it to make an crude music player with playlists and a queue. With this new knowledge, I set out to solve my problem by using Qt during reading week. I had a rough idea of what I wanted it to do. It should be able to search and find any record (using an API), save the record to a collection with user defined tags and ratings, and the user should be able to sort the collection by those tags and ratings.

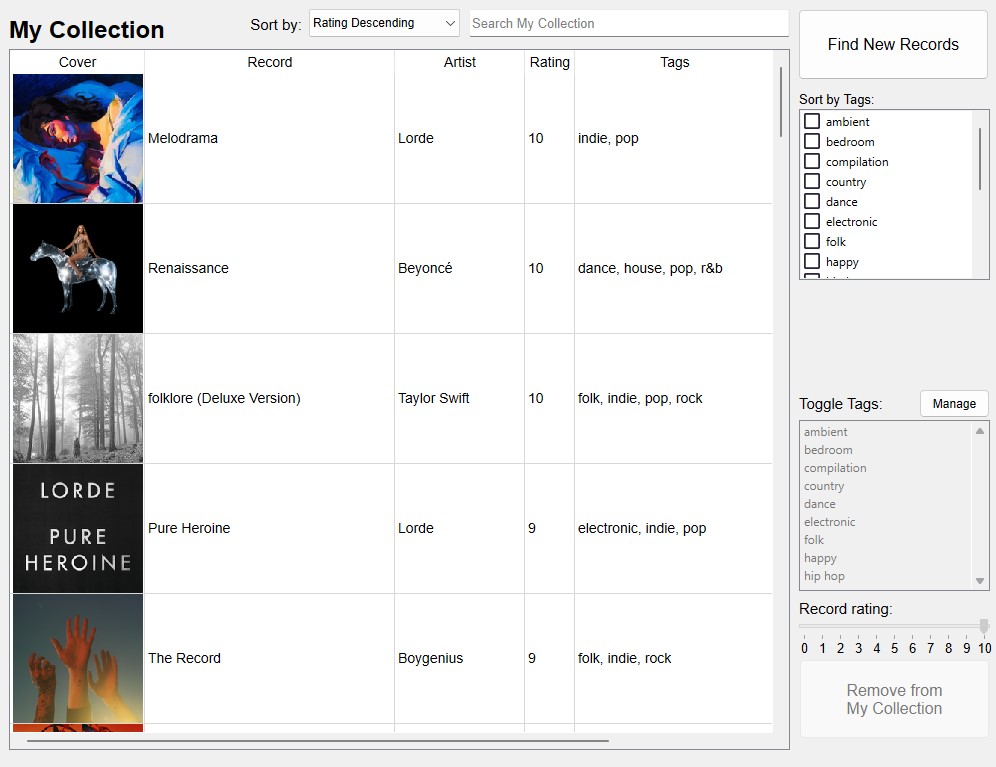

This is the first (mostly) working version of what I created. It got the basics of what I wanted it to be able to do down. Adding record, tags, and ratings. I found myself actually wanting to use the app to pick what to listen to and I even started listening to my records more. I considered it a success.
Over the course of about half a year I continued to make incremental updates to the app with feedback from friends that saw and used the app, and of course adding things I wanted from the app. Below are features I added with each minor version increment.
After v1.4.0, I felt like I was mostly "done" so I spent some time figuring out how to compile the app on a Mac so I could give my Mac user friends a version they could use. Plus, I made some minor adjustments here and there that I wanted that didn't feel major. I made some performance improvements through increased multithreading and I added an album cover loading animation, among other bug fixes and improvements.

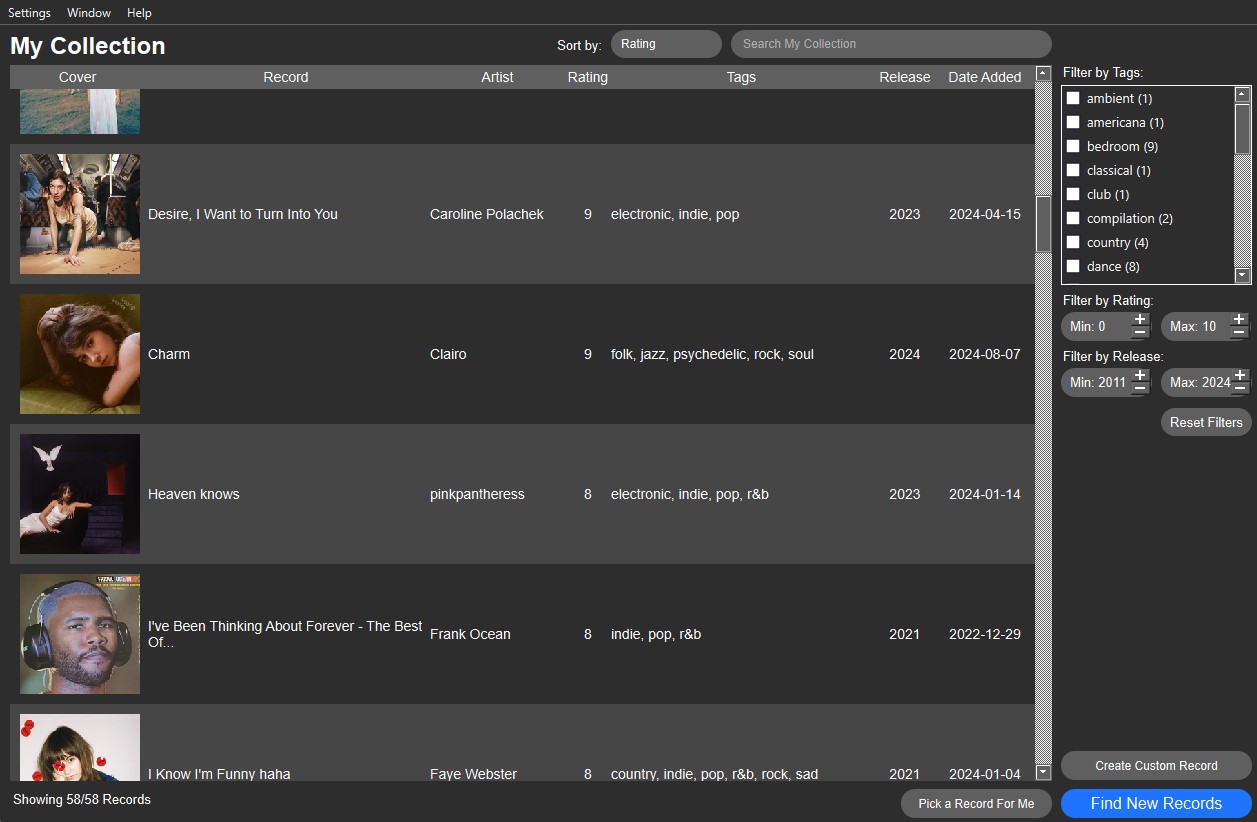

MRC 1.4.5 is the final version of the desktop app. I quite like it and I found it to be a great proof of concept. I often used it and I always kept my collection up-to-date. It can be found here . Just download source code and run the precompiled app in the "My Record Collection-xxx" folder.
For the class project of CS4471: Requirement Analysis in my fourth year, my group was tasked with creating a microservice-based system that would operate in a cloud environment. For this project, we were required to create a service registry that manages service registrations and maintains an inventory of available services, a service consumer (a front-end application) that enables users to discover registered services through a GUI, and multiple services designed as loosely coupled and independently deployable microservices capable of communicate with the registry through HTTP, AMQP, or gRPC. You can view the project description here.
We decided to code our registry with Node.JS, use MySQL for its database, AWS for cloud hosting, and HTTP requests to enable communication between the registry and services. We then had to identify functional, quality, and architecturally significant requirements (ASRs) of the registry and each service to guide our approach in developing the system's architecture. I was assigned to create the architecture diagrams, identify ASRs, and implement the registry and the first two microservices. As part of my implementation, I provided a Node.JS file to help my groupmates easily connect their services to the registry. Find our full final report here and the implementation code here.
Our system architecture consisted of three modules: one for the microservices, one for the registry, and one for the registry database. The microservice modules would be able to send heartbeats to the registry every 15 seconds, letting it know the microservice remained available, send register or deregister requests to the registry, and provide a unique function for the user.
For the backend the registry processed those POST requests made by the microservices and ensured the database remained up to date. If it did not receive a heartbeat from a microservice for 35 seconds, it would mark the microservice as unavailable. For the front end, the registry provided a GUI for users as a webpage along with another method to fetch the currently registered microservices. The webpage would use this information to update its list every few seconds.
The final module, the database, was implemented with MySQL and stored all necessary information about each registered microservice, such as the ID, name, URL, status, and timestamp of the last heartbeat.
Context Diagram
Component Diagram
The first diagram illustrates the context in which the architecture would be deployed.
The second diagram is a component-and-connector diagram, showing how the modules of the architecture interact, which modules provide interfaces, and which require them.
Finally, here is a quick demo of the implementation of the architecture running locally. I unfortunately only have microservice 1 and 2 on my repository; the other 3 are managed by my groupmates.
The registry's console can be seen below its GUI. You can see the registry and services performing as specified, with registration, deregistration, and heartbeats being sent from service to registry accordingly.
Finally, here is a quick demo of the implementation of the architecture running locally. I unfortunately only have microservice 1 and 2 on my repository; the other 3 are managed by my groupmates.
The registry's console can be seen below its GUI. You can see the registry and services performing as specified, with registration, deregistration, and heartbeats being sent from service to registry accordingly.

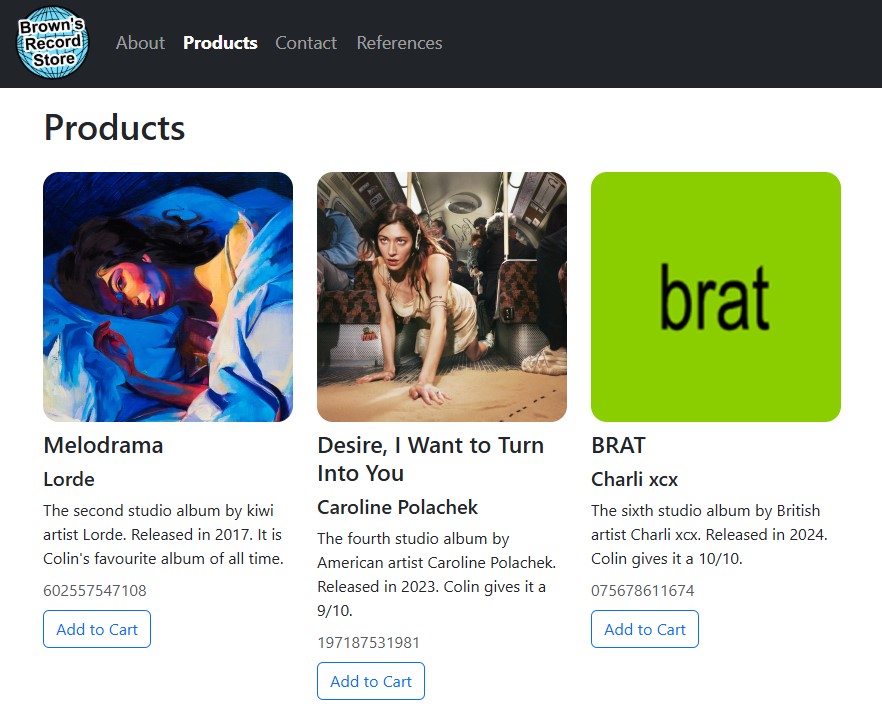

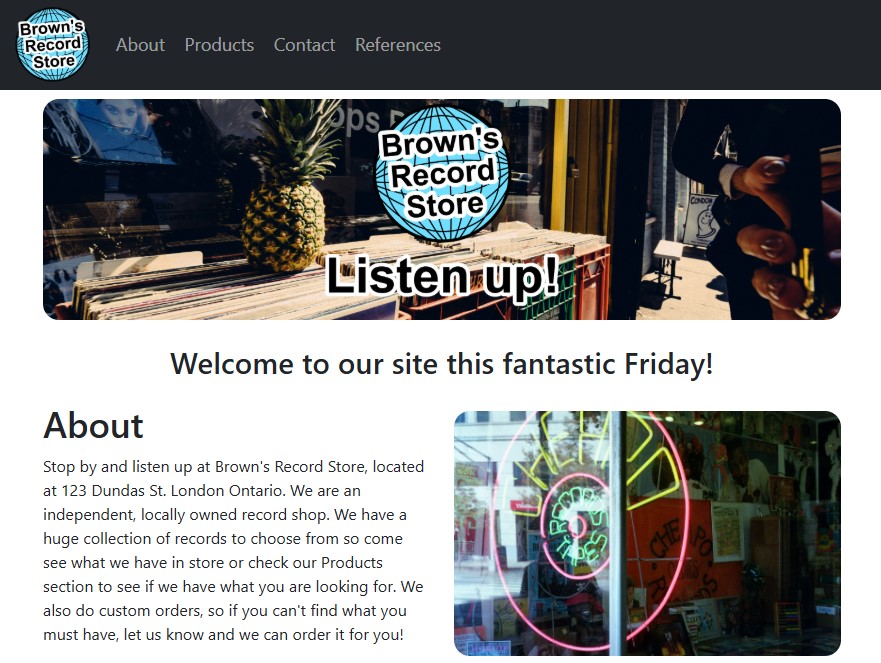

The final project of CS2033: Multimedia & Communication II in my fourth year required us to individually create a responsive, interactive, informative, and attractive website for a fake business of our choice. As you might have guessed by now, I am an avid record collector, so I chose to make a website for a record store.
Some of the requirements for the site were as follows:
I learned a lot from this course and its prerequisite, lessons I have applied to create this site showcasing myself and my projects.
For CS2212: Introduction to Software Engineering in my second year, I participated in my first computer science group project. It was my first experience coding on a team, requiring us to develop a unified idea of a codebase and deal with version control collaboratively. To stay organized, we used the Atlassian suite of software.
For the project, we needed to create a geographic information system (GIS) covering three buildings on campus. The system needed to include premade informational POIs on the map as well as functionality for user-created POIs. We were required to use Java and were encouraged to use NetBeans for its drag-and-drop UI creator. Additionally, we wrote unit tests for the code using JUnit.

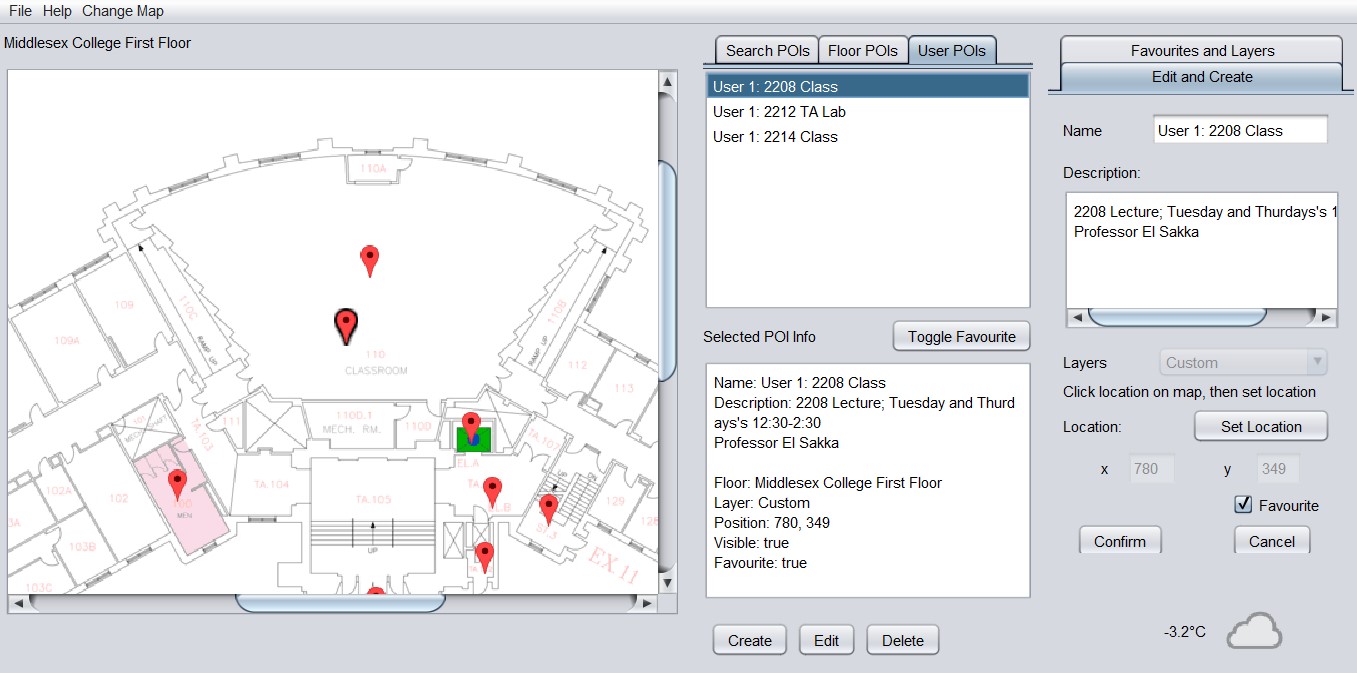

This is how our project appeared when a user selected a user-created POI and chose to edit it. You can see on the right all of the POI's data fields that you could change, and below that, the current weather on campus. Additionally, the right panel (not shown) included options to toggle different layers of POIs and a user favorites list.
In the middle-top section, you can see a list of all existing POIs, and below that is information about the selected POI. On the left, you have the map, which you can scroll around to view the entire floor.
